Door Operator

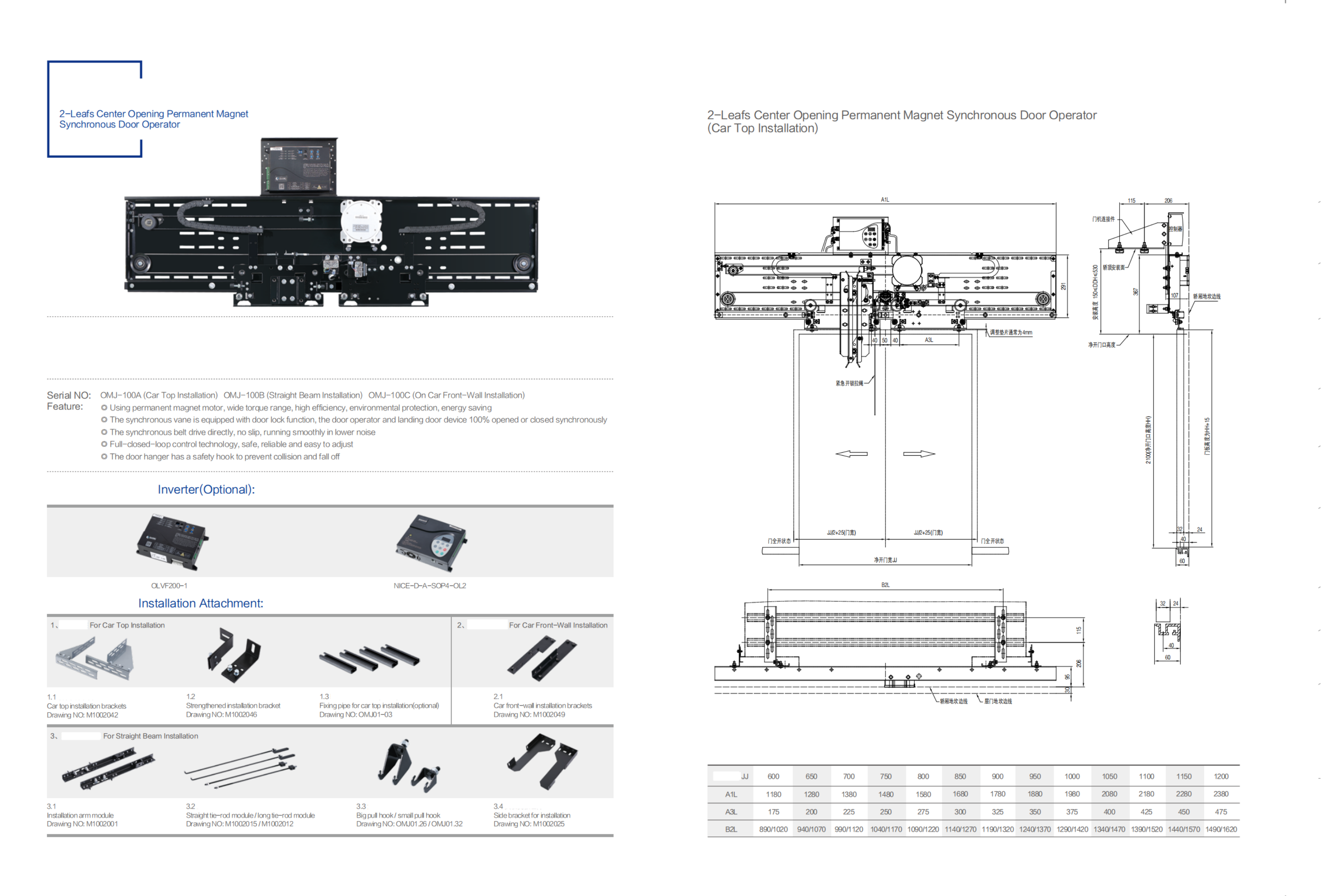

Cabin Door Operator:

OMJ-100A (Car Top Installation) OMJ-100B (Straight Beam Installation) OMJ-100C (On Car Front-Wall Installation)

◎ Using permanent magnet motor, wide torque range, high efficiency, environmental protection, energy saving

◎ The synchronous vane is equipped with door lock function, the door operator and landing door device 100% opened or closed synchronously

◎ The synchronous belt drive directly, no slip, running smoothly in lower noise

◎ Full-closed-loop control technology, safe, reliable and easy to adjust

◎ The door hanger has a safety hook to prevent collision and fall off

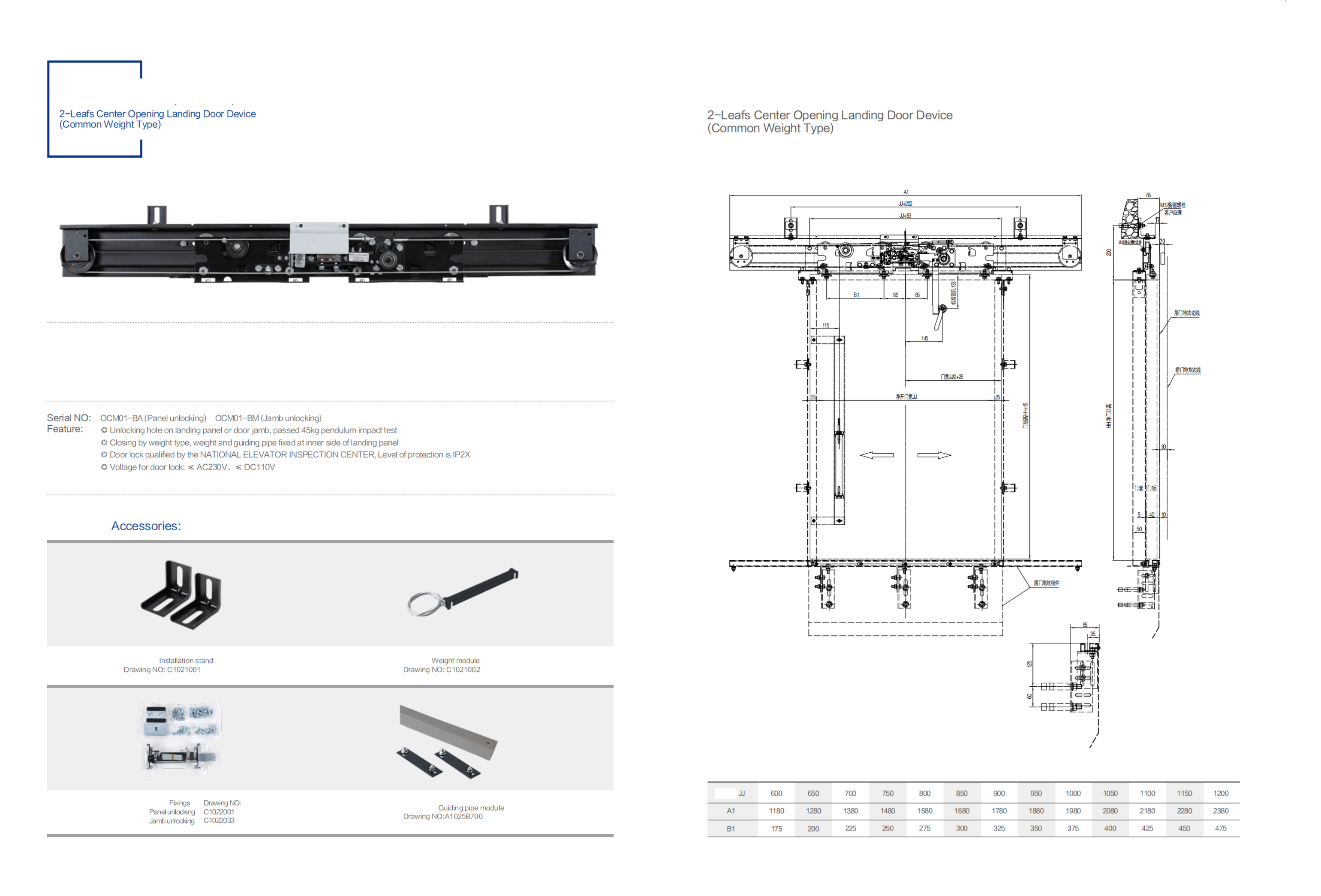

Landing Door Header:

OCM01-BA (Panel unlocking) OCM01-BM (Jamb unlocking)

◎ Unlocking hole on landing panel or door jamb, passed 45kg pendulum impact test

◎ Closing by weight type, weight and guiding pipe fixed at inner side of landing panel

◎ Door lock qualified by the NATIONAL ELEVATOR INSPECTION CENTER, Level of protection is IP2X

◎ Voltage for door lock: ≤ AC230V、≤ DC110V
